AI review — page 37

claude-opus-4-8 · prompt v7 · 2026-09-02T14:03:05+00:00 · applied: yes · changed: yes

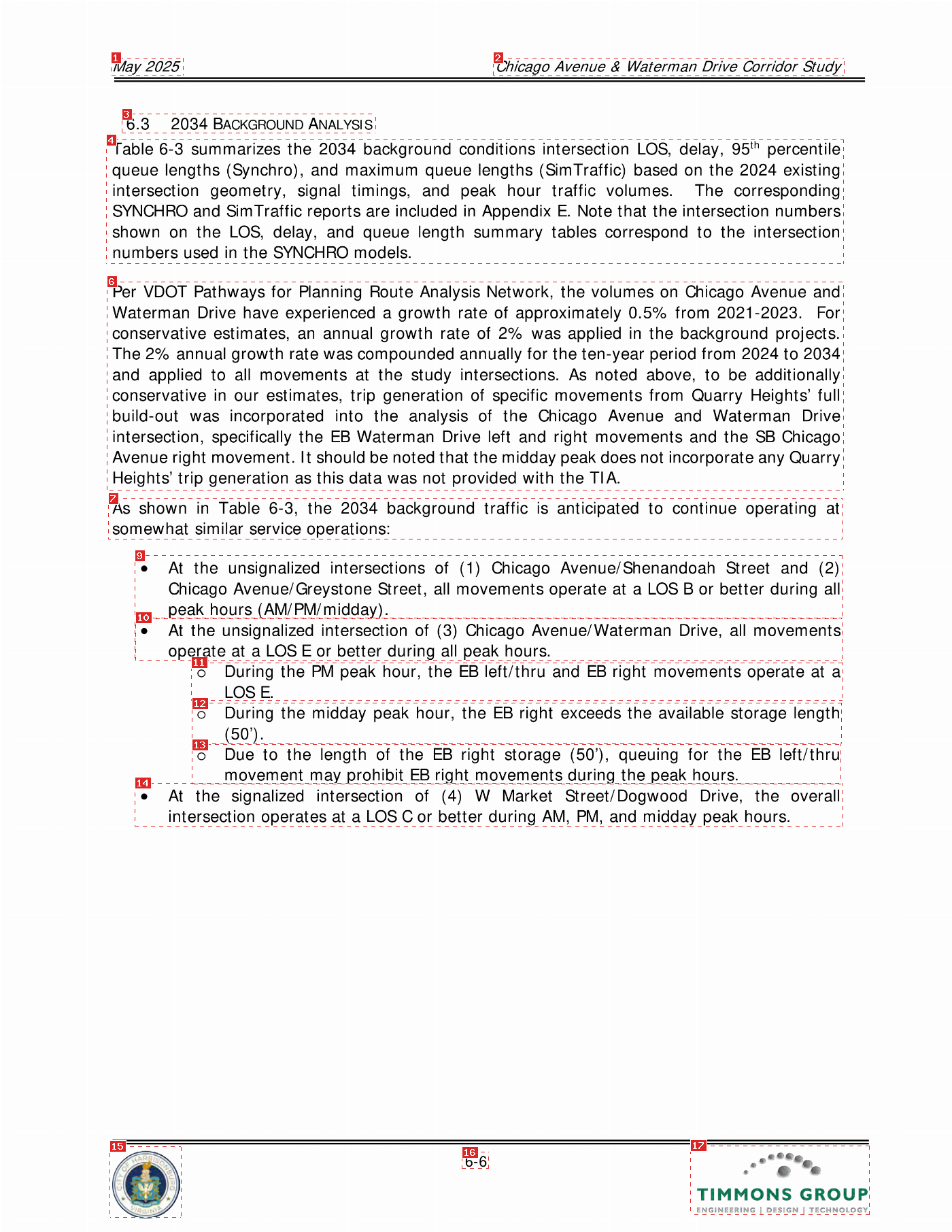

Screenshot sent to the model (reading-order tags burned on)

Instructions (system prompt)

The screenshot has annotations burned onto it that are NOT part of the document:
- a small red numbered tag at the top-left corner of each item, showing that item's position in the OCR-determined reading order (the same order the items appear in the json data);
- a red-and-white dotted outline around each item, showing the area the OCR detected for that content block.
Use the tags and outlines to see the detected reading order and item boundaries directly on the page, and judge that sequence against how a human would naturally read it. Ignore the annotations when checking text fidelity — they overlay the content, they are not content.

For the given screenshot of a PDF's page and the attached json data, I want you to perform the following tasks in order...

Review the reading order set out in the json data and compare to what a natural reading order for that of a human would be by looking at the screenshot. Decide on any changes and re-arrange the items for the most logical reading order.
Look at all text for each item and correct any extraction errors like missing words, spelling mistakes etc.
Look at each item in the JSON and ensure that the OCR process has identified the item as the correct type: text, list item etc.
Look for any text that duplicates: if two items next to each other contain the exact same text but the text only appears once on the screenshot, one of them is an extraction error — keep the item whose box matches where the text is visible and flag the other for removal.
Make amendments as you proceed through the items and list of instructions.
Reading Order Advice: If there is columns with headings and text, I wouldnt expect the reading order to jump from one heading straight to another if there is text associated with that heading.

Return format: Give me the json data back only, with the amendments you make.

Mechanical notes (so your answer can be applied automatically):
- Each item has an `id` — keep every item and its `id` exactly as given; never invent, drop or duplicate ids. Re-arranging means changing the position of items (and their nesting) in the arrays.
- Never move text (or a type) from one item to another: each item's coordinates travel with its id, so to change reading order you must move the whole item object, and text amendments must be in-place corrections of that item's own text.
- To flag a duplicate item, keep it in the array and add `"remove": "duplicate"` to it — never just delete it (deleted items are restored automatically).
- ids are opaque labels, not sequence numbers: never renumber them. After a removal or re-arrangement, every remaining item keeps the exact id it came with, even if the ids no longer look sequential.
- Text may contain `[pN.M…]` placeholders marking where an inline formula belongs — treat them as part of the text and leave them exactly where they are.
- `box` is [left, top, right, bottom] as percentages of the page from the top-left corner; return it unchanged.
- Respond with raw JSON only: no code fences, no commentary, same shape as the input (`{"items": [...]}`).

User message (json data sent)

Page 37 json data:

{"items":[{"id":"p37.1","type":"header","box":[12,5,19,6],"text":"May 2025"},{"id":"p37.2","type":"header","box":[52,5,89,6],"text":"Chicago Avenue & Waterman Drive Corridor Study"},{"id":"p37.3","type":"heading","box":[13,9,39,11],"text":"6.3 2034 BACKGROUND ANALYSIS"},{"id":"p37.4","type":"text","box":[11,11,89,21],"text":"Table 6-3 summarizes the 2034 background conditions intersection LOS, delay,[p37.4.1] percentile queue lengths (Synchro), and maximum queue lengths (SimTraffic) based on the 2024 existing intersection geometry, signal timings, and peak hour traffic volumes. The corresponding SYNCHRO and SimTraffic reports are included in Appendix E. Note that the intersection numbers shown on the LOS, delay, and queue length summary tables correspond to the intersection numbers used in the SYNCHRO models.","children":[{"id":"p37.4.1","type":"text","box":[11,11,89,21],"text":"95^{th}"}]},{"id":"p37.5","type":"text","box":[11,23,89,40],"text":"Per VDOT Pathways for Planning Route Analysis Network, the volumes on Chicago Avenue and Waterman Drive have experienced a growth rate of approximately 0.5% from 2021-2023. For conservative estimates, an annual growth rate of 2% was applied in the background projects. The 2% annual growth rate was compounded annually for the ten-year period from 2024 to 2034 and applied to all movements at the study intersections. As noted above, to be additionally conservative in our estimates, trip generation of specific movements from Quarry Heights' full build-out was incorporated into the analysis of the Chicago Avenue and Waterman Drive intersection, specifically the EB Waterman Drive left and right movements and the SB Chicago Avenue right movement. It should be noted that the midday peak does not incorporate any Quarry Heights' trip generation as this data was not provided with the TIA."},{"id":"p37.6","type":"text","box":[11,40,88,44],"text":"As shown in Table 6-3, the 2034 background traffic is anticipated to continue operating at somewhat similar service operations:"},{"id":"p37.7","type":"list","box":[14,45,88,54],"text":"","children":[{"id":"p37.7.1","type":"list_item","box":[14,45,88,50],"text":"- At the unsignalized intersections of (1) Chicago Avenue/Shenandoah Street and (2) Chicago Avenue/Greystone Street, all movements operate at a LOS B or better during all peak hours (AM/PM/midday)."},{"id":"p37.7.2","type":"list_item","box":[14,50,88,54],"text":"- At the unsignalized intersection of (3) Chicago Avenue/Waterman Drive, all movements operate at a LOS E or better during all peak hours."}]},{"id":"p37.8","type":"text","box":[20,54,89,57],"text":"During the PM peak hour, the EB left/thru and EB right movements operate at a LOS E."},{"id":"p37.9","type":"text","box":[20,57,88,60],"text":"During the midday peak hour, the EB right exceeds the available storage length (50')."},{"id":"p37.10","type":"text","box":[20,60,88,64],"text":"Due to the length of the EB right storage (50'), queuing for the EB left/thru movement may prohibit EB right movements during the peak hours."},{"id":"p37.11","type":"list_item","box":[14,64,89,67],"text":"- At the signalized intersection of (4) W Market Street/Dogwood Drive, the overall intersection operates at a LOS C or better during AM, PM, and midday peak hours."},{"id":"p37.12","type":"footer","box":[12,93,19,99],"text":""},{"id":"p37.13","type":"footer","box":[49,94,51,95],"text":"6-6"},{"id":"p37.14","type":"footer","box":[73,93,91,99],"text":""}]}
